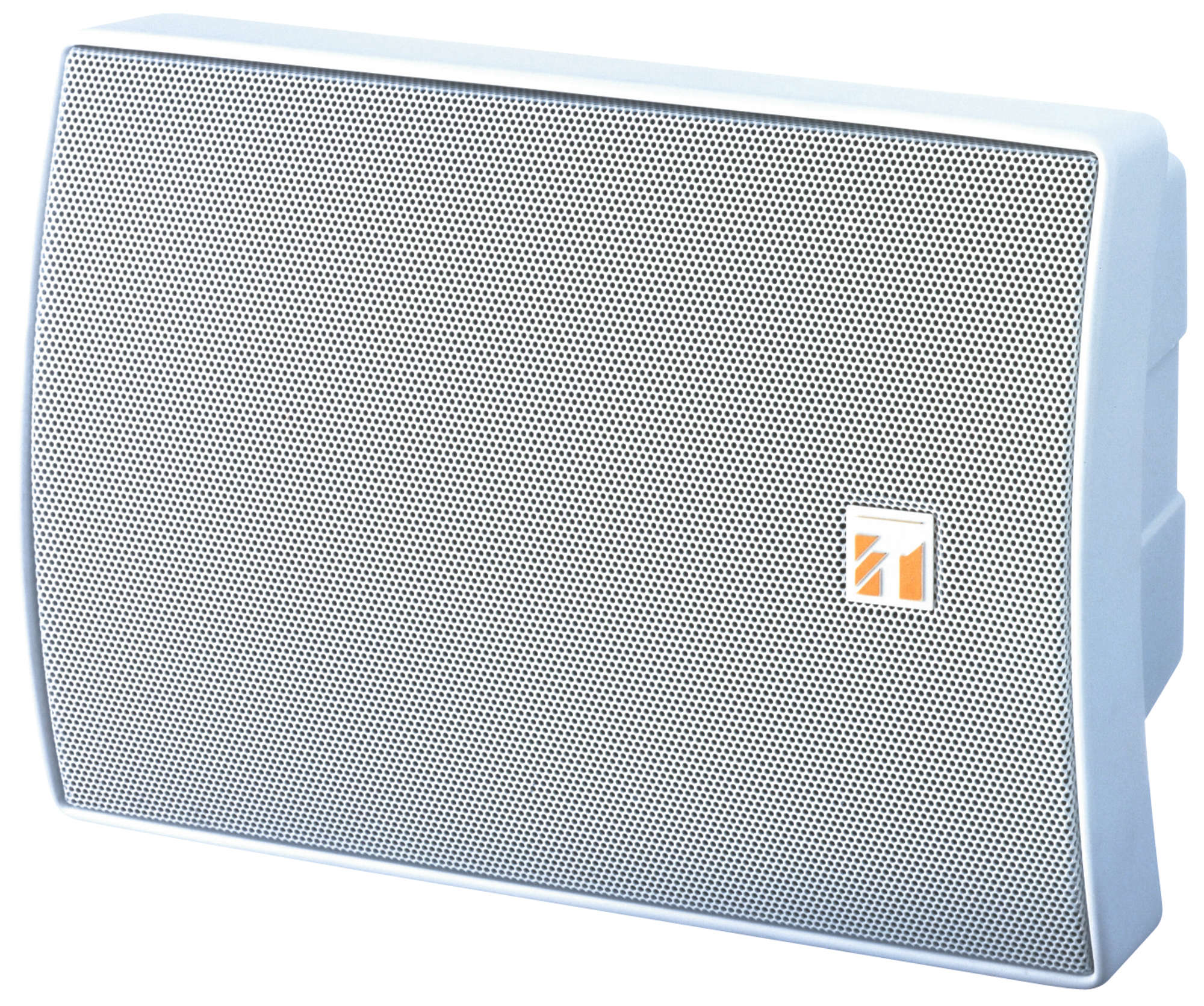

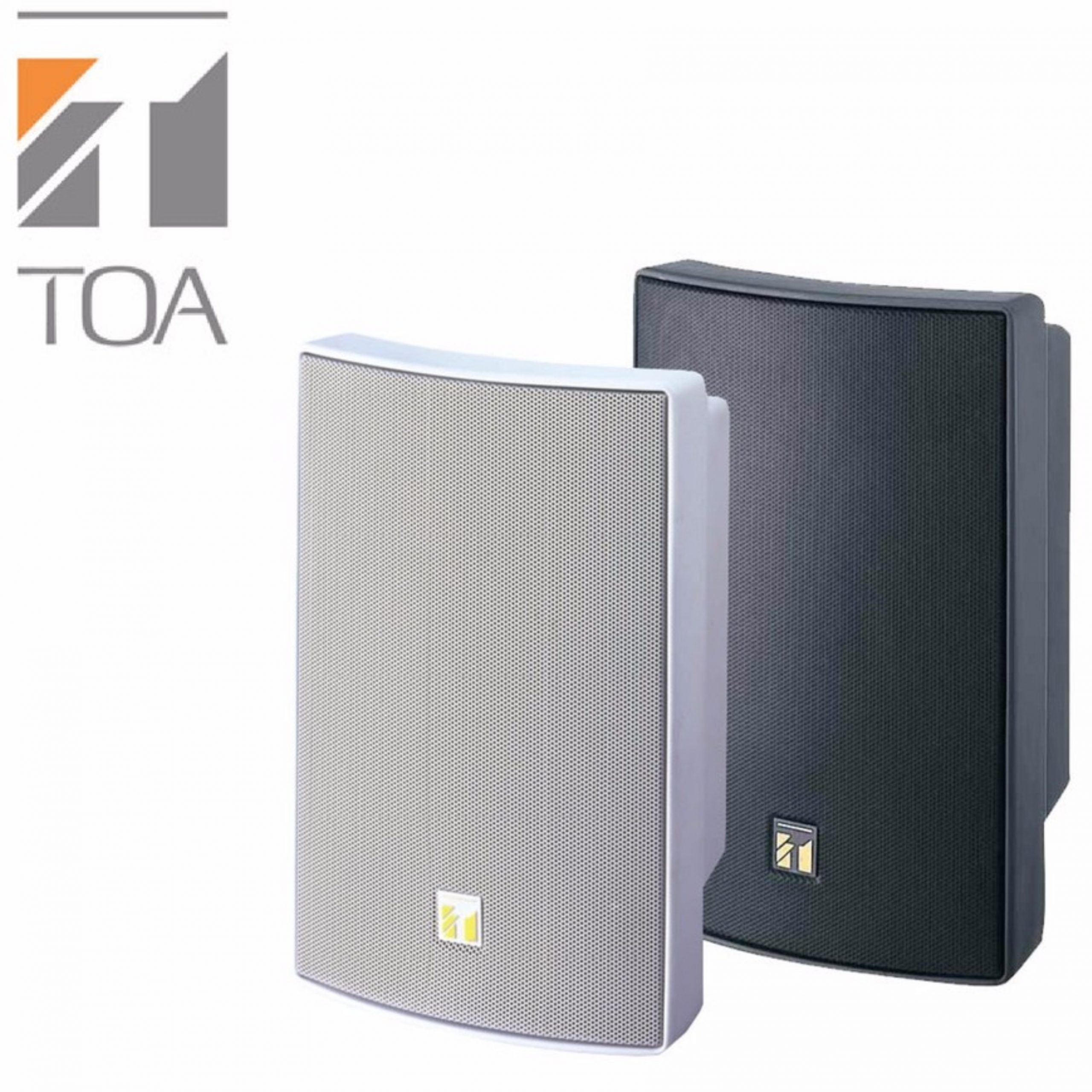

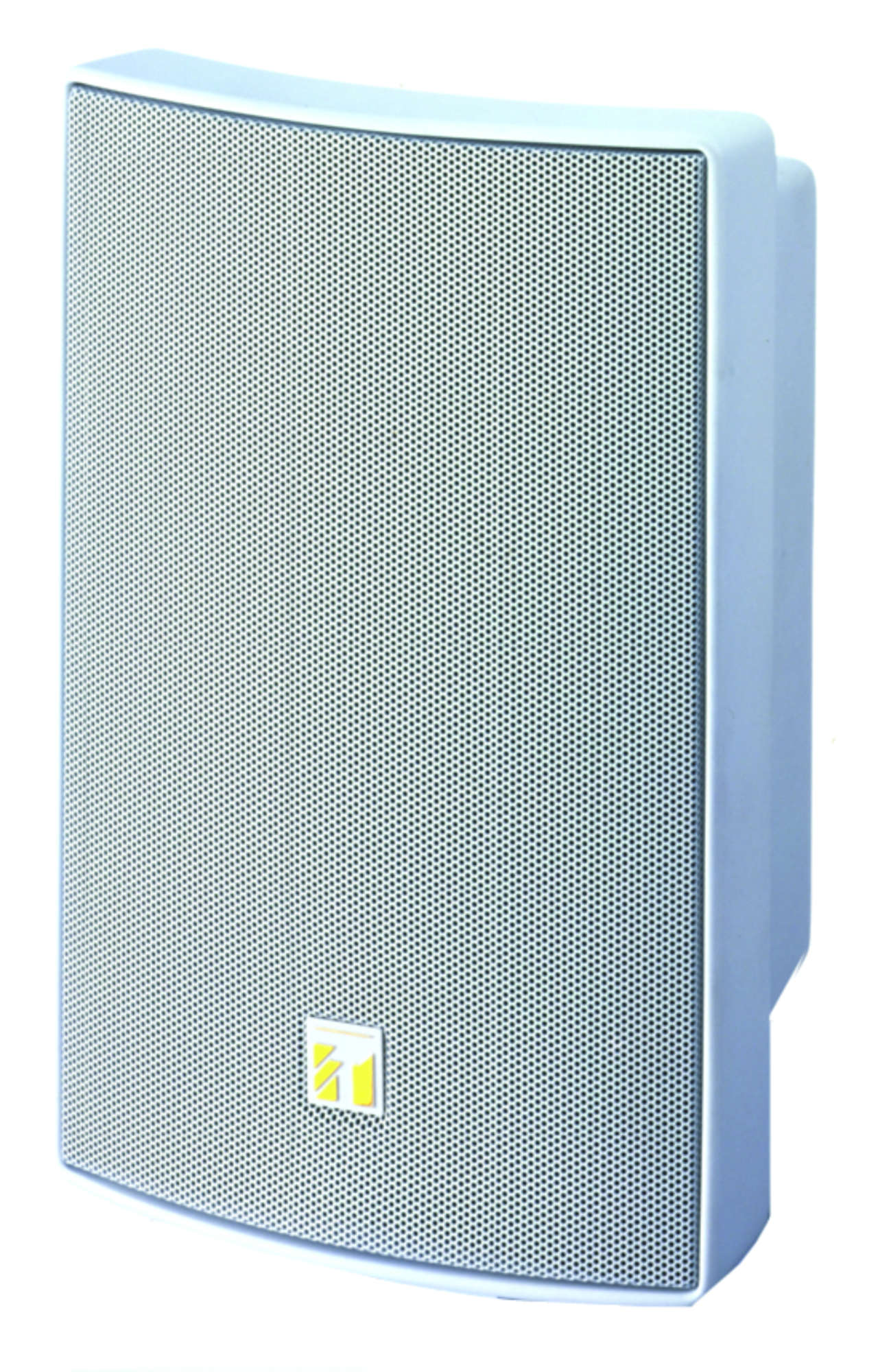

Name: Toa Speaker BS-1030W (Black / White)
Brand: Toa
SKU: 1859
Availability: InStock

Toa Speaker BS-1030W (Black / White)Toa

Wall Speakers

The BS-1030W is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030W can be used for both high-impedance and low-impedance applications. The speaker’s splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.

BrandToa

CategoriesSpeakers

Specifications

2-way bass reflex speaker
Cost-effective high power PA box speaker

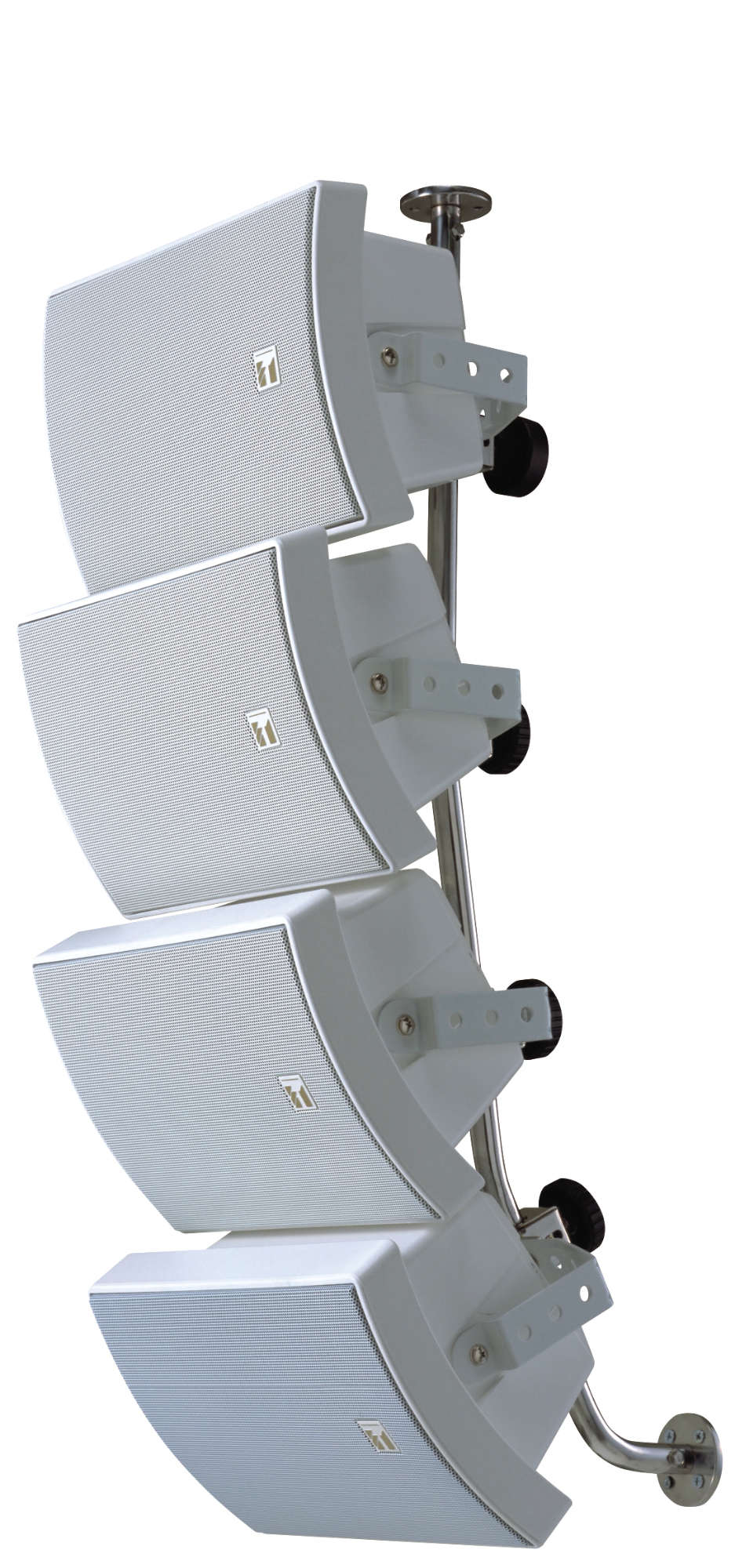

Various installation options
Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
Splash proof construction in compliance with IPX4

Enclosure: 2-way bass-reflex type

Rated Input: 30 W

Rated Impedance: 8 Ω

100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)

Sound Pressure Level: 90 dB (1 W, 1 m)

Frequency Response: 80 Hz – 20 kHz

Speaker Component: 12 cm cone-type + dome-type

Speaker Cable: 2-core cabtyre cord with diameter of 6 mm

Water Protection: IPX4 (can be installed vertically or horizontally.*)

Operating Temperature: -10 ℃ to +50 ℃

Finish: Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint
Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating
Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE,
powder coating

Dimensions: 196 (W) x 290 (H) x 150 (D) mm (unit only)

Weight: 2.5 kg (unit only)

Included Accessories: Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
