1. GENERAL DESCRIPTION

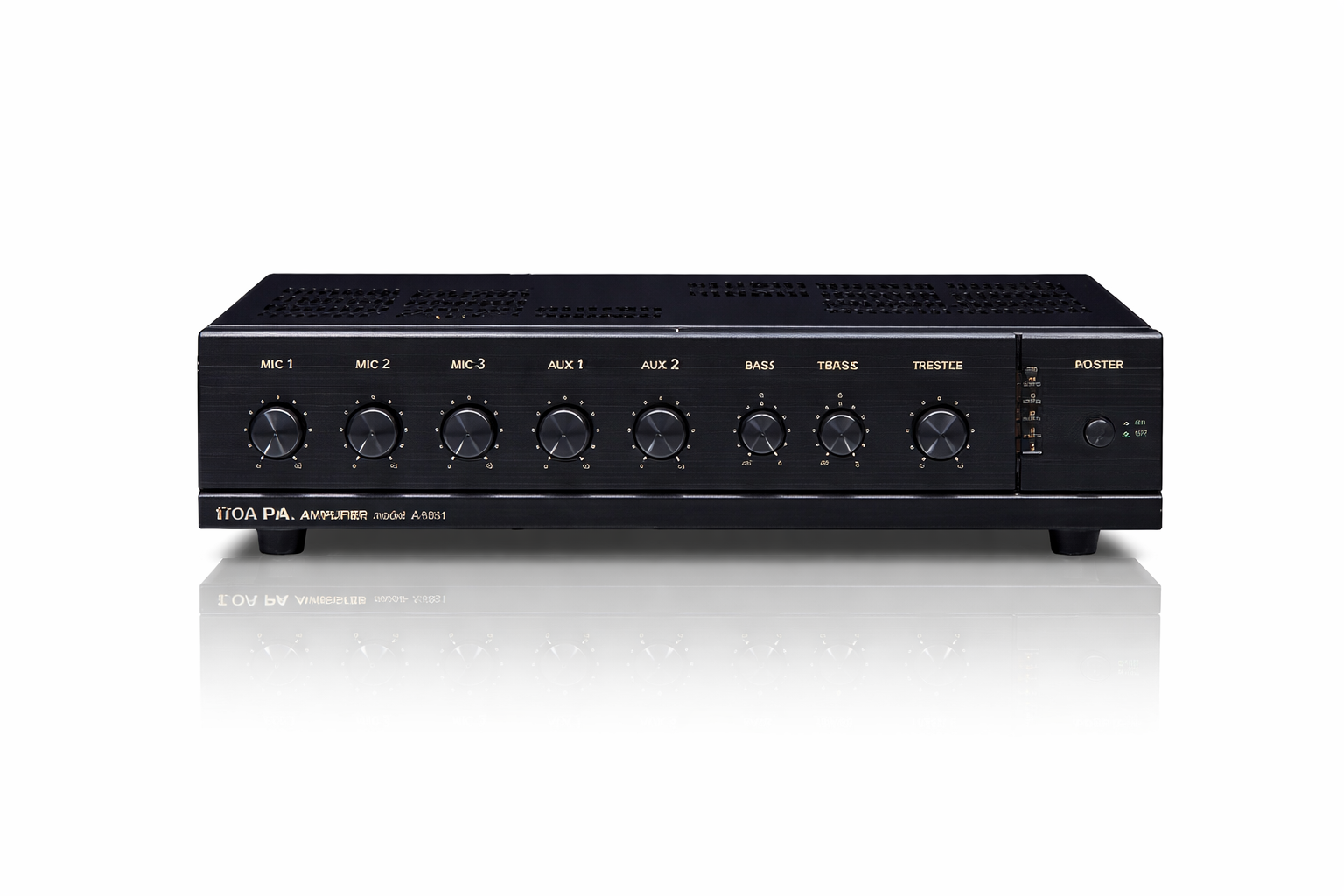

TOA’s Basic PA Amplifiers A-1031, A-1061, and A-1121 are high cost-performance mixer power amplifiers suited for broadcasting paging or background music in schools, offices, and shops.

2. FEATURES

• High durability, high reliability, and high cost performance.

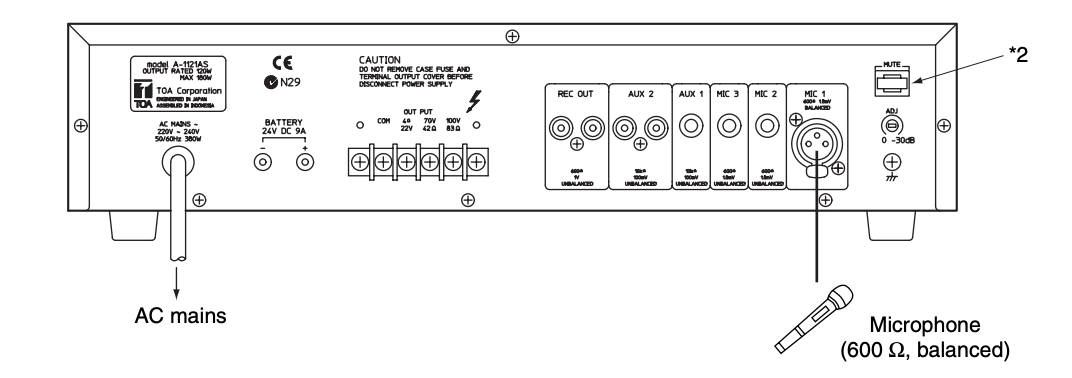

• Three microphone inputs, two AUX inputs, and one recording output.

• Speaker outputs of constant voltage distribution system (100 V and 70 V) and low impedance (4 Ω).

• Operates on both AC and DC power.

• Muting function.

• Independent input volume controls and master volume control.

• Independent tone controls cut both high and low frequencies.

• Power voltage selector of 110 – 120 V or 220 – 240 VAC (LH version).

• MIC 1 input is a 5-pin DIN connector to provide muting control and phantom power for condenser microphones. (ER and UK versions).

• Five-segment output level meter provides at-a-glance monitoring of output status.

• Current limiter circuitry protects transistors, and the thermal protection circuitry prevents a failure due to overheat

3. SPECIFICATIONS Note:

The design and specifications are subject to change without notice for improvement. Specifications are measured on 240 VAC power operation. The LH versions operating voltage is factory-preset at “220 V – 240 VAC”.

Model Output Output Regulation Speaker Output Recording Output Input MIC 1 Connector MIC 1 Phantom Power (ER/UK Versions)
