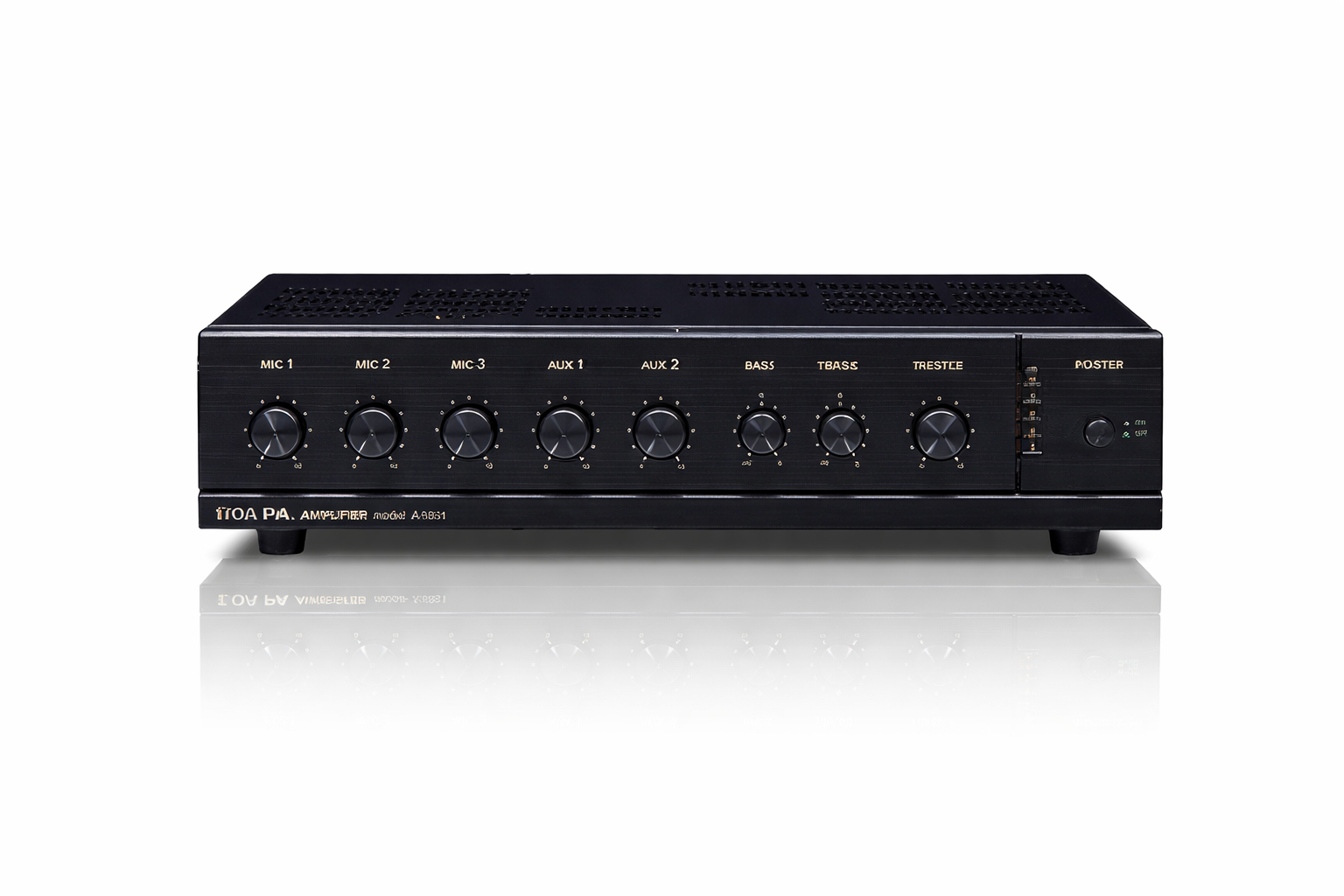

The A-1061 is a mixer power amplifier featuring high cost-performance suited for broadcasting paging or background music in schools, offices, and shops.

SPECIFICATIONS
* 0 dB = 1 V

Power Source
110 – 120 V AC or 220 – 240 V AC selectable, or 12 V DC

Rated Output
60 W (90 W max.)

Power Consumption
220 W (rated output), 9 A (DC operation)

Frequency Response
100 – 10,000 Hz (+3 dB)

Distortion
Under 1% at 1 kHz, 1/3 rated power

Output Regulation
Under 3 dB, no load to full load

Tone Control
Over -10 dB at 100 Hz and 10,000 Hz

S/N Ratio
Over 92 dB (all volume controls: ccw)
Over 75 dB (MASTER volume: cw, all input volume: ccw)
Over 70 dB (MIC 1, 2, 3) and over 75 dB (AUX 1, 2)

Output
(Speaker) High impedance: 83 Ω (70 V), 170 Ω (100 V), balanced
Low impedance: 4 Ω, balanced
M4 screw terminal, distance between barriers: 9 mm

(Recording output) 0 dB*, 600 Ω, unbalanced, RCA pin jack (when using both L and R)

Input
(MIC 1) -55 dB*, 600 Ω, unbalanced, phone jack
(MIC 2) -55 dB*, 600 Ω, unbalanced, phone jack
(MIC 3) -55 dB*, 600 Ω, unbalanced, phone jack
(AUX 1) -20 dB*, 10 kΩ, unbalanced, phone jack
(AUX 2) -20 dB*, 10 kΩ, unbalanced, RCA pin jack (when using both L and R)

Indicators
Power indicator LED, LED output level meter

Protection Circuit
Current limiter, thermal protection, AC and DC fuse

Muting Function
MIC 1 overrides other input signals with 0 – 30 dB attenuation

Finish
Panel: ABS resin, black
Case: Steel plate, black, paint

Dimensions
420 (W) × 103 (H) × 262 (D) mm

Weight
7 kg

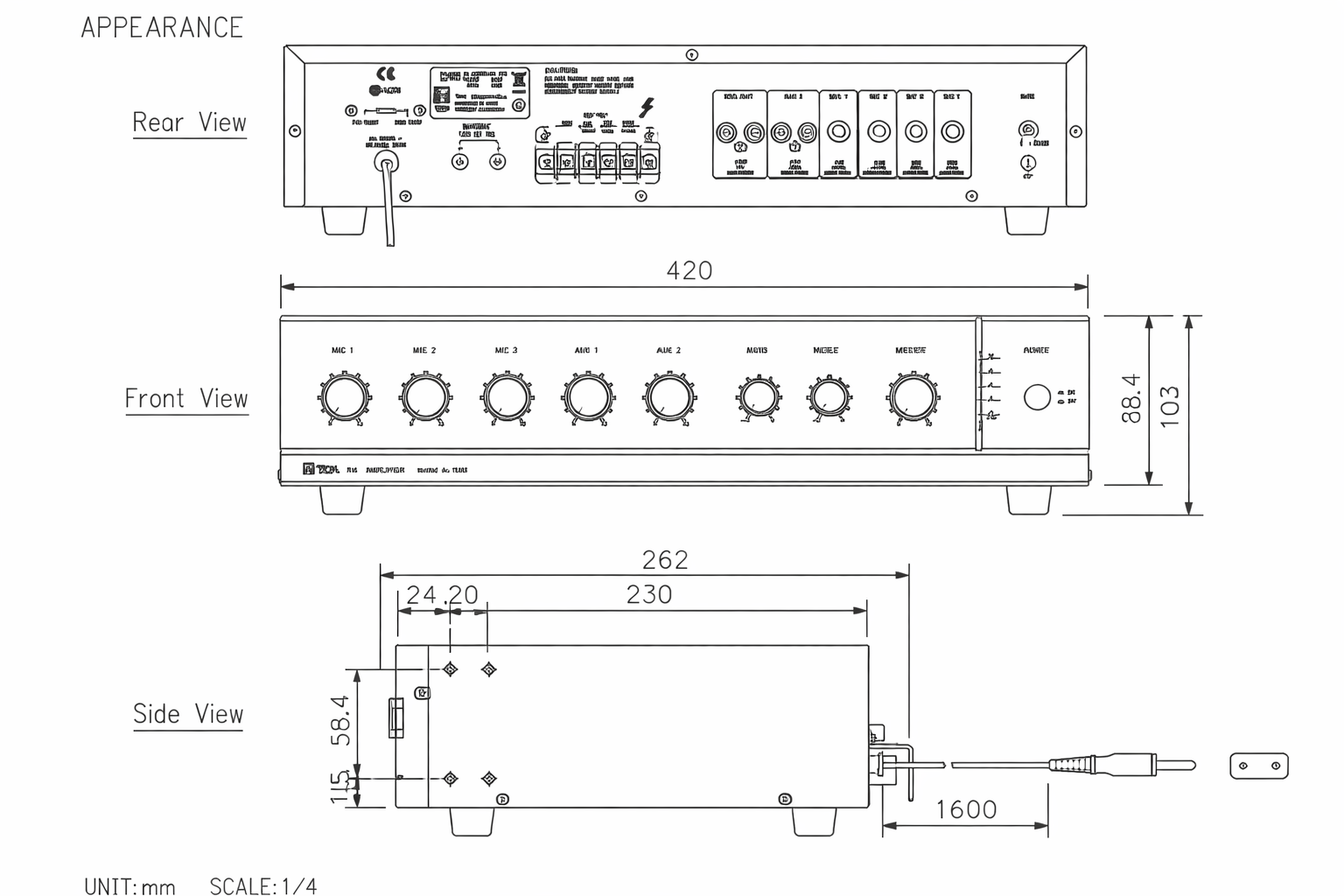

APPEARANCE
Rear View
Front View
Side View

UNIT: mm
SCALE: 1/4

TOA Corporation
DWG No: GA-03SA1
